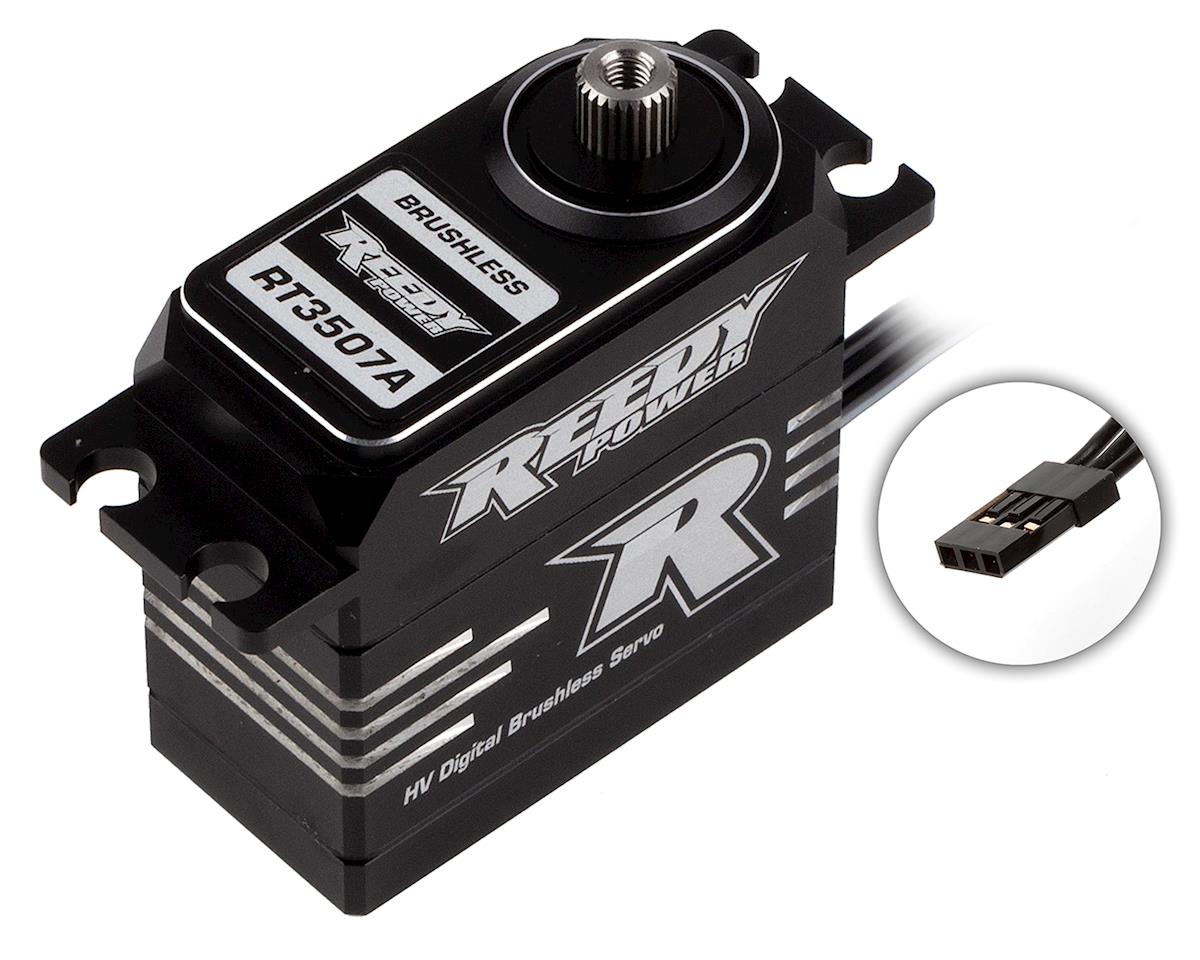

Reedy RT3507A Digital Aluminum Hi-Torque Brushless Servo (High Voltage)
Specifications:
Input: 6.0 - 8.4V
Speed (sec/60°):
@6.0V: 0.095
@7.4V: 0.075
@8.4V: 0.070
Torque:
@6.0V: 361.07 oz-in (26.0 kg-cm)
@7.4V: 416.62 oz-in (30.0 kg-cm)
@8.4V: 486.05 oz-in (35.0 kg-cm)
Dimensions: 40x20x39.3mm
Weight: 75g
Spline: 25T
Specifications:
Input: 6.0 - 8.4V
Speed (sec/60°):
@6.0V: 0.095
@7.4V: 0.075
@8.4V: 0.070
Torque:
@6.0V: 361.07 oz-in (26.0 kg-cm)
@7.4V: 416.62 oz-in (30.0 kg-cm)
@8.4V: 486.05 oz-in (35.0 kg-cm)
Dimensions: 40x20x39.3mm
Weight: 75g
Spline: 25T
