Specifications

Radio:

3-channel 2.4GHz FHSS with dual rate steering and throttle, charge jack on transmitter for optional NiCd batteries.
Servo:

High output ball bearing.
Metal gear.
Digital.
18kg-cm torque.
Motor:

3900Kv brushless.
4 pole.
Outer Diameter ø36mm.
Shaft ø3mm.
ESC:

Hobbywing 60A waterproof ESC with single Deans plug battery connectors.
Cooling fan and program card.

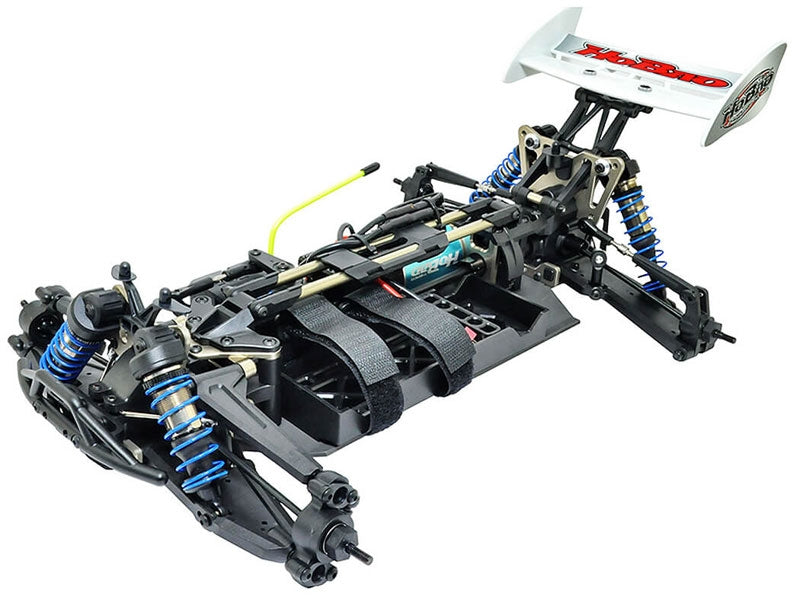

Chassis:

Lightweight.
Hard anodised CNC aluminum.
3mm thick.
Centre Top Brace:

Wire pass through.
Easy to remove with a single screw.
Drive:

Central: Single ø4mm Hardened steel centre driveshaft.
Optional Aluminium driveshaft H0P1-0072.
Front: CVA axles, ø3.2mm Hardened steel.
Rear: Dogbone, axles, ø3.2mm Hardened steel
Differentials:

Center diff is directly connected to rear diff.
Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
Center Spur Gear: 40T (MOD 1).
Front differential filled with 5K silicone oil.
Center differential filled with 5K silicone oil.
Rear differential filled with 3K silicone oil.
Shocks:

Filled with 600 silicone oil.
Aluminium 12mm Big Body.
3.5mm Shaft.
Aluminium Adjustable Ring.
Shock Cap Protector.
Spring:

Front: 0.86kg/cm, L=50mm, Blue.
Rear: 064kg/cm, L=65mm, Blue.
Optional Front Spring H0P1-0073: 1 kg/cm, L=50mm, Grey.
Optional Rear Spring H0P1-0074: 0.73kg/cm, L=65mm, Grey.
Shock Tower: 3mm, CNC aluminium.
Optional carbon fiber shock tower, Front tower H0P1-0070 & Rear tower H0P1-0071.
Suspension:

Front PBS.
Optional aluminium steering block set H0P1-0077: Alumumium rear hub H0P1-0079.
New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the TT10).
Optional carbon fiber arm insert H0P1-0068 and H0P1-0069.
Front & rear anti-roll bars.
Front and rear mg alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles.
Steering:

New Steering Crank set with CNC aluminium rack and hard spring.
Ball bearing equipped with servo saver.
Battery tray:

Motor Gear: 13T (MOD 1).
Spur Gear: 40T (MOD 1).
Motor Mount:

CNC aluminium laydown motor mount.
Fitting for motors with size below 38mm.
Spur gear cover.
Tyres:

Pin-spoke tyres.
Wheels:

5-Spoke wheels.
White.
12mm Hex.
Diameter 62mm.
Width 51.2mm.
Ball Bearings:

Full set included.
Caster:

Adjustable.
Camber:

Adjustable.
