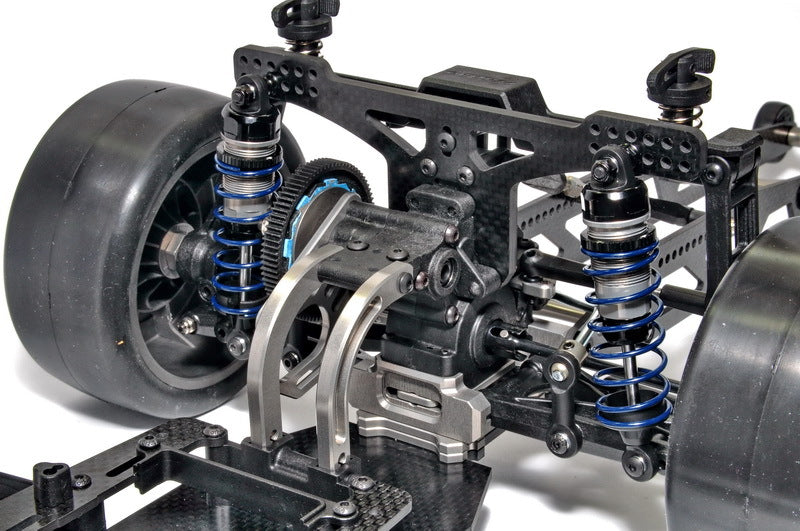

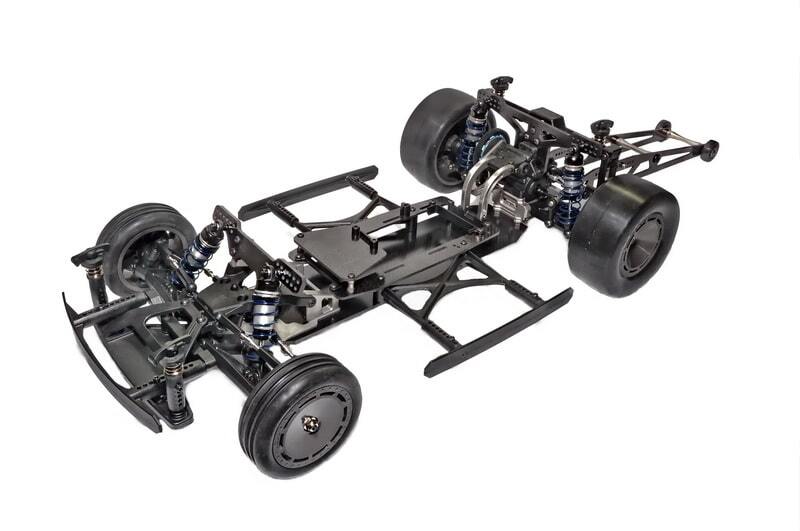

[FEATURES]
Mid-motor 3 gears design
Lightweight and rigid design, made up of lots of carbon fiber and hardened anodized aluminum alloy parts in overall structure.
– 3mm carbon fiber chassis
– 4mm carbon fiber front and rear tower
– Carbon fiber wheelie bar set
– Carbon fiber battery mount set
– Carbon fiber ESC mount with battery platen plate.
All metal gear transmission with hardened steel shaft
– Heavy duty metal sealed gear differential with 500K silicon oil
– High strength steel 3 gear transmission design, 27T Idler gear / 51T Diff housing gear/ 21T lay-shaft gear
280mm long wheelie bar set
– Carbon fiber arm ,CNC Aluminum standoffs, Ball bearing
– Height adjustable and fine-tuned, Tension arms with turnbuckle (Allows shock mounting, #40059 or #40125)
– Pair wheels with 26mm rubber tires
Rear floating body mount set
3mm rear sway bar
12mm big bore aluminum shock with silicon oil (soft front springs / hard rear springs)
Soft belted rear tire, 2.2”/3.0” ( material : natural rubber- IIR)
10.5mm thick rear wheel hex
New front and rear rim
Adjustable battery mount set allows to fine-tune the battery position
3.5mm hardened steel rear CVA shaft
Fully adjustable turnbuckle
Spur gear 84T, Optional 94T-48P (Optional part #OP1-0059)
New CNC aluminum suspension holder RF and RR
Adjustable body support for front and side
New design quick release body post
New front bumper with weight adjustment (Optional part #OP1-0060)
[REQUIREMENTS]
2-Channel Radio/Transmitter Set
ESC & Motor
Pinion Gear for Motor
Glue for tire
Body and Paint for body
High-torque Steering Servo
LiPo Batteries
Battery Charger
Batteries for Transmitter
